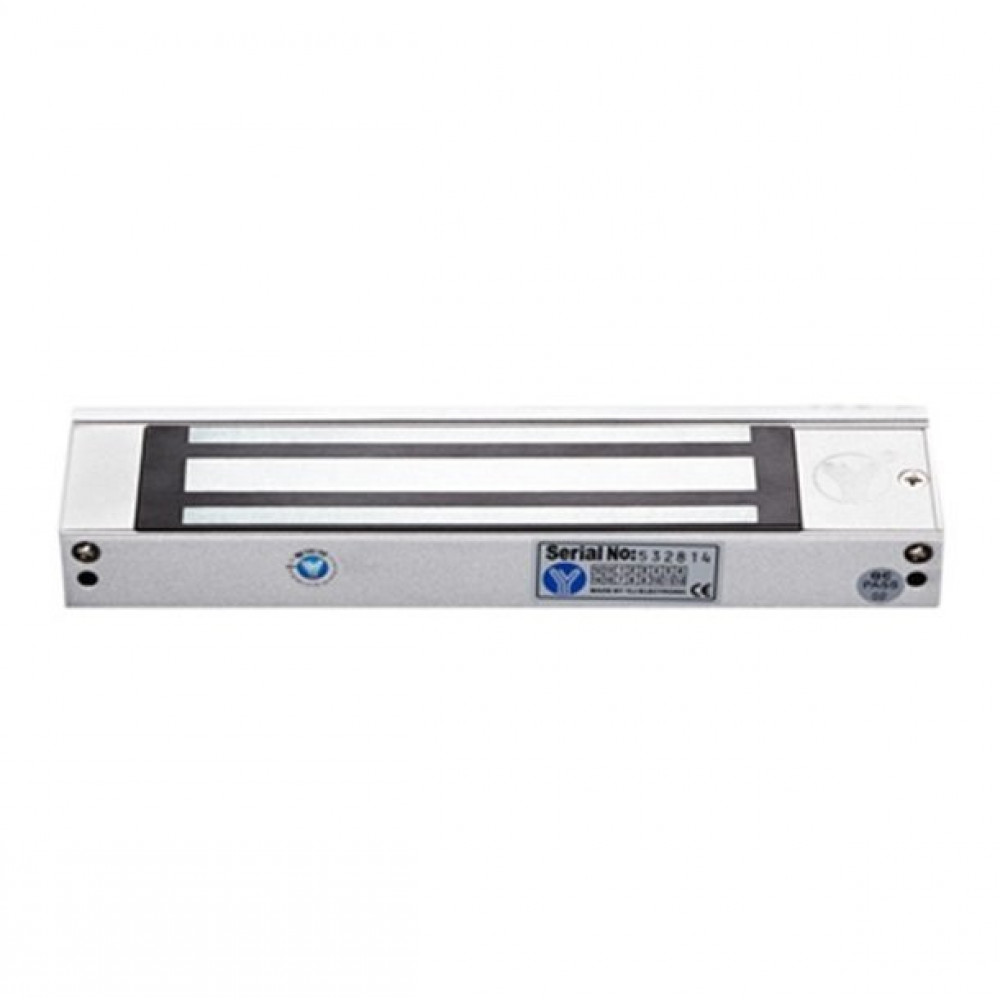

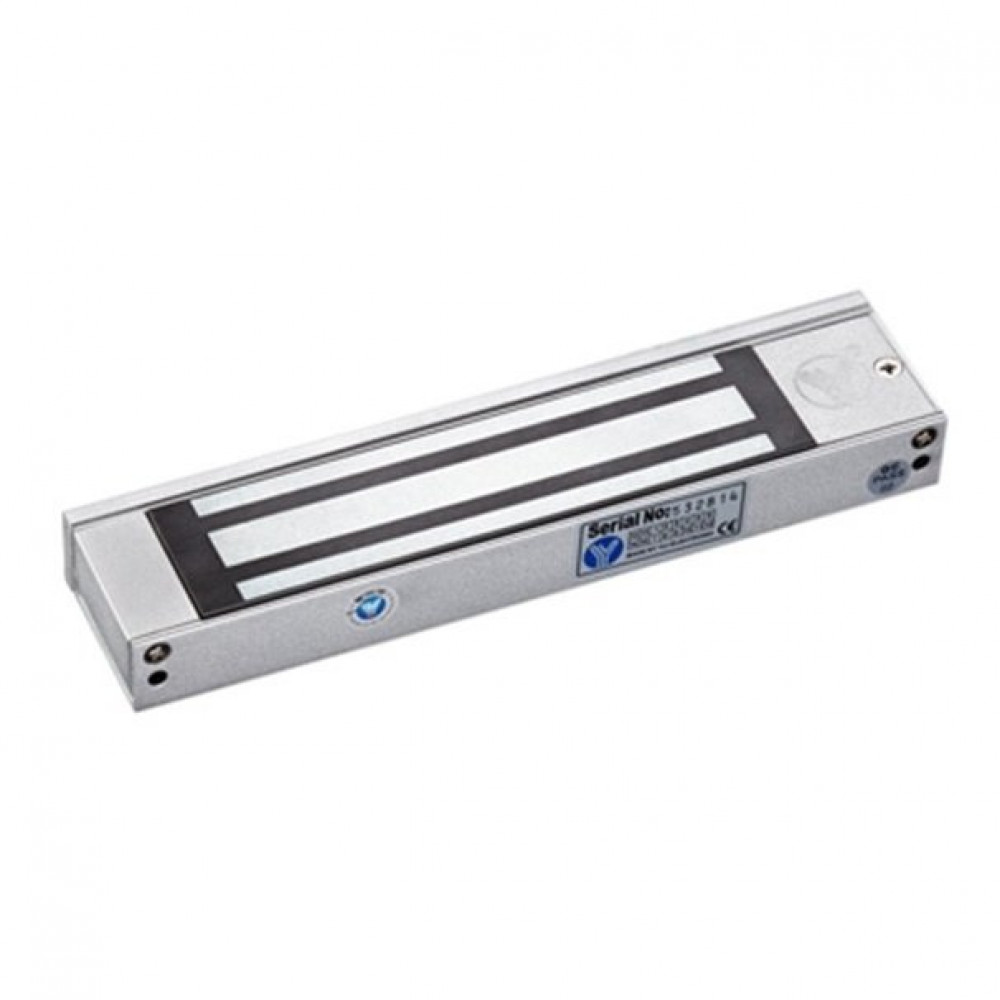

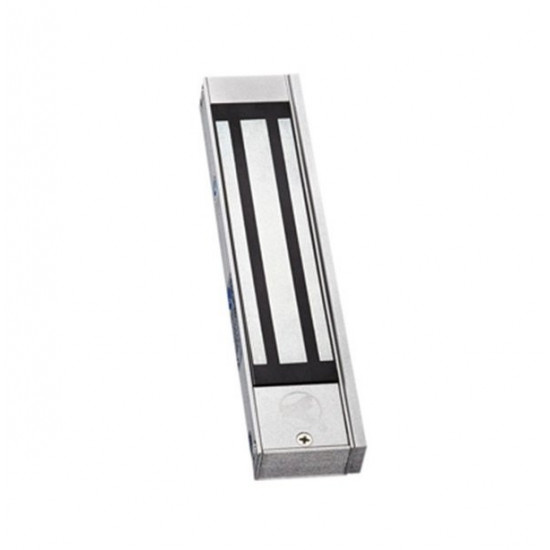

Smart Home YLI Electronic YM-180-S electromagnetic lock

Description Smart Home YLI Electronic YM-180-S Electromagnetic lock

by

for laid on installation on inside metal, plastic, metalplastic, wooden or glass doors (with use of a mounting corner of MBK-180UL). Force of deduction is up to 180 kg on a gap.

Principle of operation of the device is based by

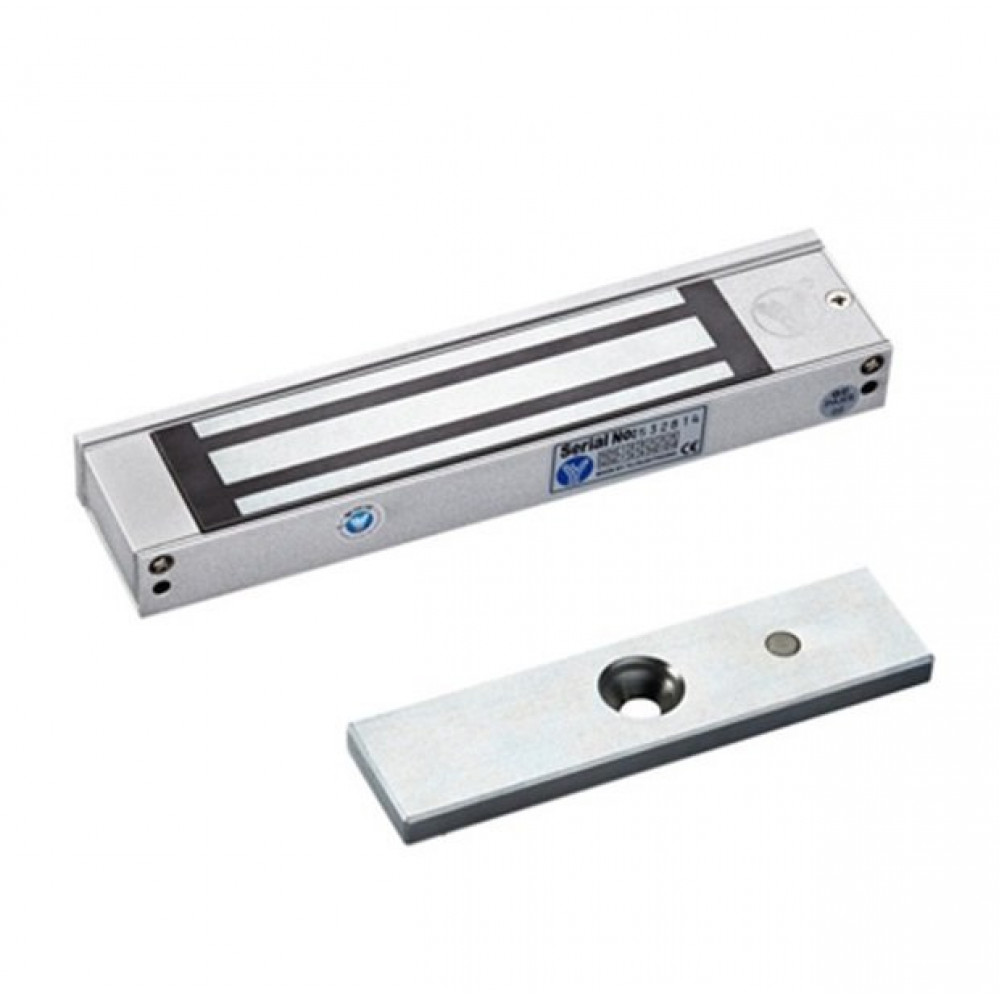

on a magnetic attraction. The lock consists of the block with an electromagnet and response Planck, the block with an electromagnet is installed on a door box, and a response level – on a door. At power supply the lock primagnichivat and holds a response level, locking a door. In lack of power the lock opens that conforms to requirements of fire safety. For compensation of cotton when closing a door, on a response level the rubber gasket is provided.

Feature

• Sil of deduction on a rupture of 180 kg;
• It is equipped with the door status sensor;
by
• Without power it is open (NO);
• Power of DC12B or DC24B is switched by a jumper on the lock;
• Energy consumption 12B/300ma or 24B/150ma;
• lock housing Material: anodized aluminum, a response part - zinc;
• Laid on mounting.

Characteristic Smart Home YLI Electronic YM-180-S Electromagnetic lock

• Type Electromagnetic lock
• case Material Metal
• Guarantee, month
