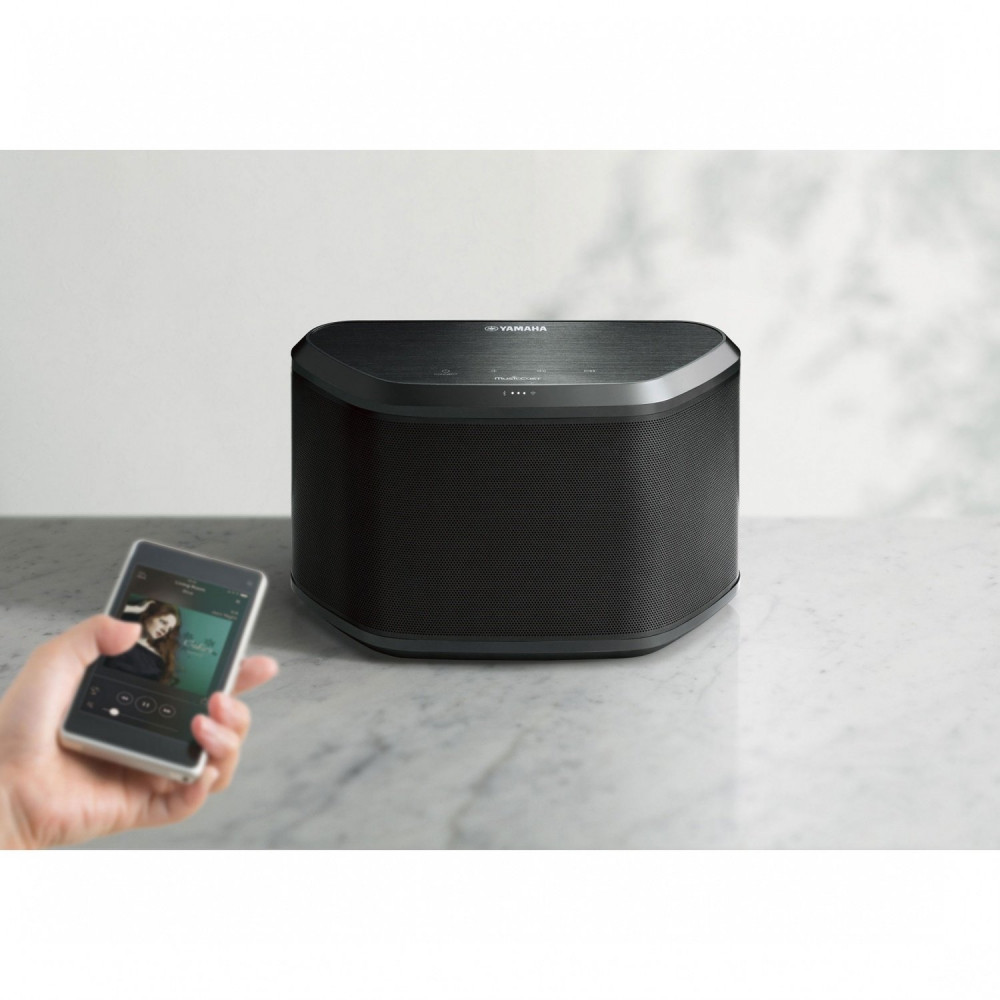

Yamaha WX-030 Black speaker system (YZR98670)

Description Yamaha WX-030 Black Speaker system (YZR98670)

Yamaha WX-030 Black Speaker system - a unique opportunity to inform of favourite music in the most distant corners of your house with worthy quality. The most important brick in the harmonious building of MusicCast.

by means of similar speaker systems music to the most remote and unexpected places of your house, whether it be the bedroom, wardrobe or the bathroom. And, nothing, except existence of the normal electric socket, for installation of such column is required - it is integrated into the MusicCast system without wires on Wi-Fi, or receives a signal directly from your smartphone or the tablet on Bluetooth. Support of these two main household standards of wireless transfer and also the majority of modern wireless protocols and Airplay technologies, is the primary competitive advantage of Yamaha WX-030.
Nothing, except existence of the normal electric socket, for Yamaha WX-030 installation is required - it is integrated into the MusicCast system without wires on Wi-Fi, or receives a signal directly from your smartphone or the tablet on Bluetooth.

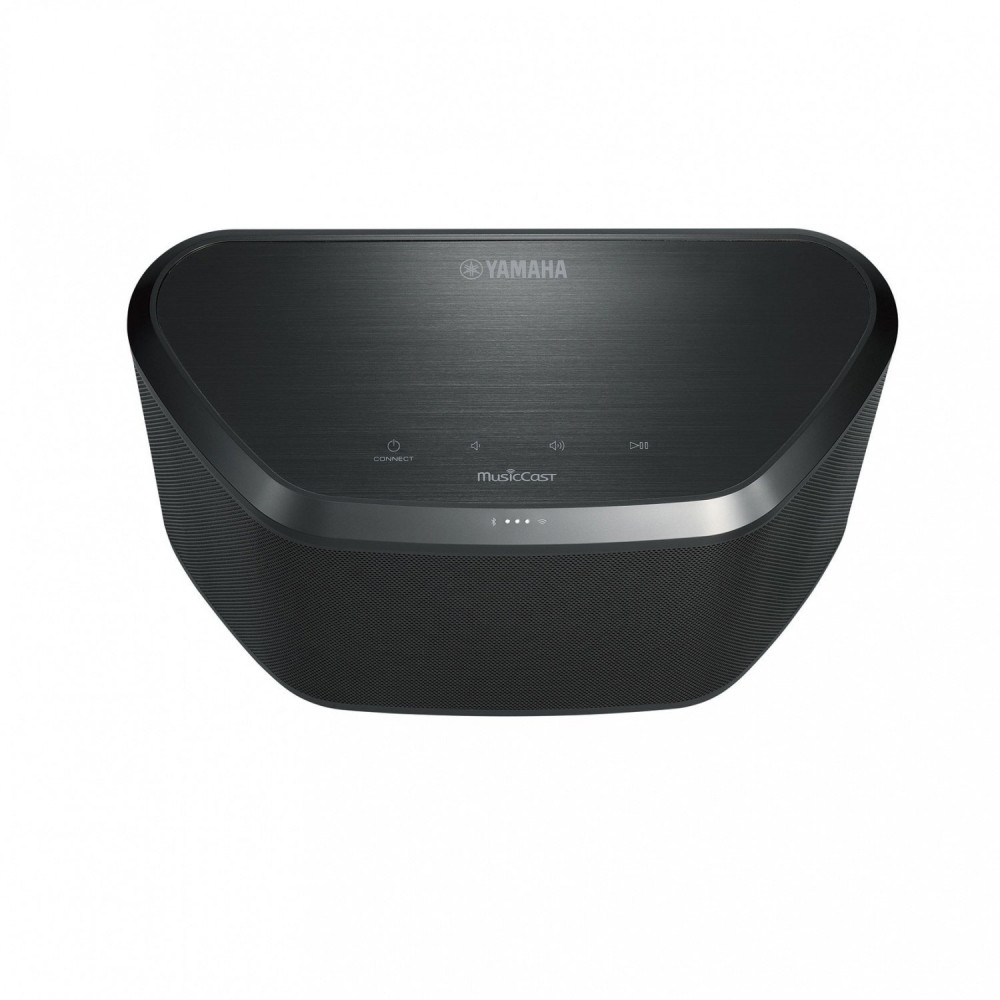

in quite heavy MDF case in the form of a trapeze. All three front edges are tightened by a protective metal screen of black or white color (depending on the general tone of finishing of an office). On the panel in the center of a facade NCh/SCh the driver with the diffuser with a diameter of 9 cm and dome twitter of 1.3 cm in size is mounted. On a back wall of the case the passive radiator strengthening bass return is placed. The column can be placed as on any shelf, or a dresser, and to fasten to a wall. And, in the last option there is an opportunity not only to hang up Yamaha WX-030 on a wall, but also to mount on the optional bracket - the corresponding threaded hole is provided by a column design. Indicator LEDs took the place on the top slanted edge on the center, and touch command keys were placed on the top wall of the case nearby. Bodies of indication and management here at least - three LEDs - Bluetooth, power on and Wi-Fi, and four keys - Network/Connect, reduction and increase in volume and also Play/Pause. The main functionality on setup and management of playback is concentrated in the signature Yamaha MusicCast CONTROLLER application for portable gadgets running iOS and Android.
All switching is mounted in a niche in the lower part of the case. Here only the power connector and Ethernet RJ45 port for wire connection to a home computer network are located. Complete with a column there is a special lid with cable channel closing this niche.
Existence of the built-in Bluetooth adapter allows to do without integration of a column into a home computer network. In this case as a music source for Yamaha WX-030 your smartphone or the tablet which is connected to a column directly on Bluetooth will act.

For integration of Yamaha WX-030 into a home computer network needs to install on your smartphone or the tablet the signature Yamaha MusicCast CONTROLLER application available for devices running iOS or Android. For a configuration of the speaker system the mobile gadget should be connected to the same network. In an application interface we select the Add the New Device function, and on a column we key and we hold during the 3rd seconds Connect. The application should find Yamaha WX-030 then will become possible to register for it parameters of connection to Wi-fi network and to make other necessary settings. After completion of configuring MusicCast network you have an opportunity to send music from any source of a system to any room of your house. For example, it is possible to broadcast music from the player of vinyl disks installed in the living room and connected to an AV receiver on wireless the EXPERT of Yamaha WX-030, being in kitchen, and other column Yamaha WX-030 located in the bedroom to puzzle with playback of a track of high resolution from the DLNA server in your network. If necessary via the MusicCast CONTROLLER application it is possible to integrate several zones of listening and at the same time to broadcast in them the same musical material. Yamaha WX-030 supports playback including the WAV and FLAC files with parameters up to 24 bits / 192 kHz and also stream broadcasts of popular Internet services.
Existence of the built-in Bluetooth adapter allows to do without integration of a column into a home computer network. In this case as a music source for Yamaha WX-030 your smartphone or the tablet which is connected to a column directly on Bluetooth will act.
Evaluating quality of sounding of so compact column, we will note that it sounds for the sizes very dynamically and expressively. Excellently worked mid-frequency range leans on let and superficial, but nevertheless the base of the low-frequency register. Sounding very air is also sated with the smallest details. At the same time, Yamaha WX-030 was resistant to an overload – any hints on the serious growth of distortions it was revealed not even at very high levels of volume.

Characteristic:

• Type: Wireless speaker system
• Output power, W: 30 (on 6 Ohms, 1 kHz, KNI of 10.0%)
• Frequency range, Hz: 60 — 20,000
• Supported audio codecs: MP3, WMA, WAV, AAC, ALAC, AIFF, FLAC
• Maximum permission of a digital signal:: 24 bits / 192 kHz
• Bluetooth: Yes, 2.1+EDR, A2DP, AVRCP support
• Network interfaces: Ethernet RJ45, Wi-Fi of 802.11 b/g/n
• Dynamics: LF / SCh - 9 cm, HF - 1.3 cm, a passive radiator
• In addition: Compatibility with MusicCast, support DLNA 1.5, Airplay Dimensions, cm: 24.3 x 15.7 x 11.3
• Weight, kg: 2.2

Characteristic Yamaha WX-030 Black Speaker system (YZR98670)

• Country vendor China
• Bluetooth Is
• Wireless interfaces (Wi-Fi) Is
• SD/microSD-reader there Is no
• USB reader there Is no
• FM receiver there Is no
• Power from network
• Karaoke there is no
