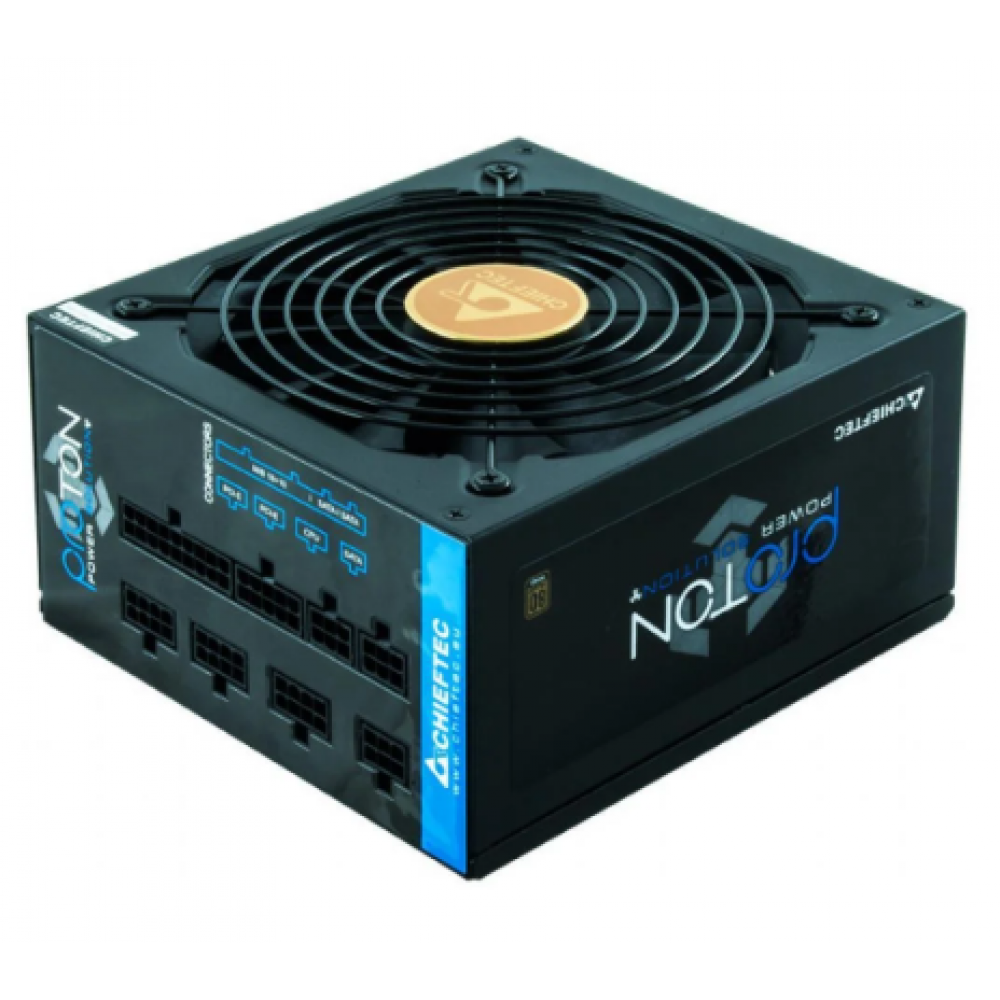

Chieftec BDF-1000C ATX 1000W Retail Proton

Main characteristics

ATX form factor

ATX 12V Form Factor Specification Version 2.3

Output power 1000 W

PFC module active

Efficiency from 85%

Modular cable connection

Maximum load

+ 3.3V 22 A

+ 5V 22 A

+ 12V (1) 83 A

-12V 0.5A

+ 5Vsb 3.0 A

Power characteristics

Voltage 110/230 V

Frequency 50/60 Hz

Output connectors

Motherboard power supply 20 + 4 pin

CPU power 4 + 4 pin (2 pcs.)

PATA (Molex) 3 pcs.

SATA 9pcs

FDD (Floppy) 1 pc.

Power supply for video cards 6 x 6 + 2 pin

Cooling

Cooling type cooler

Number of fans 1 pc.

Fan diameter 140 mm

Protection

Protection technologies OPP (overload protection by total power), OCP (overcurrent protection on each channel), SCP (short circuit protection), OVP (overvoltage protection), UVP (undervoltage protection), OTP ( overheat protection)

physical characteristics

Width 150 mm

Height 87 mm

Depth 160 mm

Packaging type Retail

EAN-13 barcode 4710713231313

Description Chieftec ATX 1000W Retail Proton (BDF-1000C)

Modern circuitry based on DC-DC converters

The BDF-1000C power supply is one of 4 power supplies with modular cables that are part of the PROTON series. The advantage of this model is the most modern circuitry based on DC-DC converters, with one powerful + 12V line at the output. This PSU allows significant energy savings, as well as increases the efficiency and stability of power supply of installed components, which, in turn, ensures a longer service life. The PROTON series PSUs have an efficiency of> 85% (80 PLUS BRONZE certified), thus fulfilling all the requirements of the ENERGY STAR 5.0 and higher standard, as stipulated by EU regulations.
