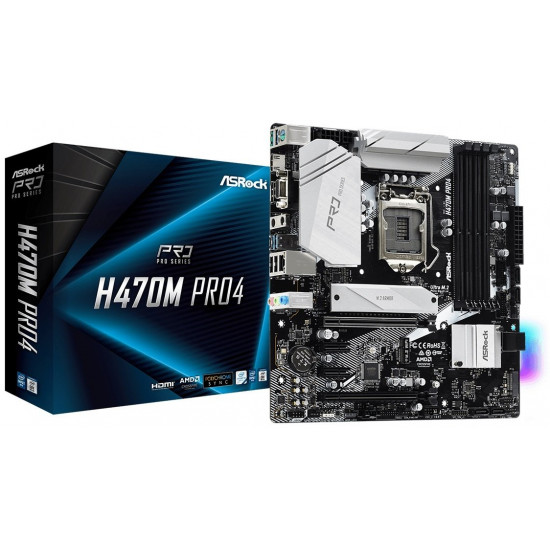

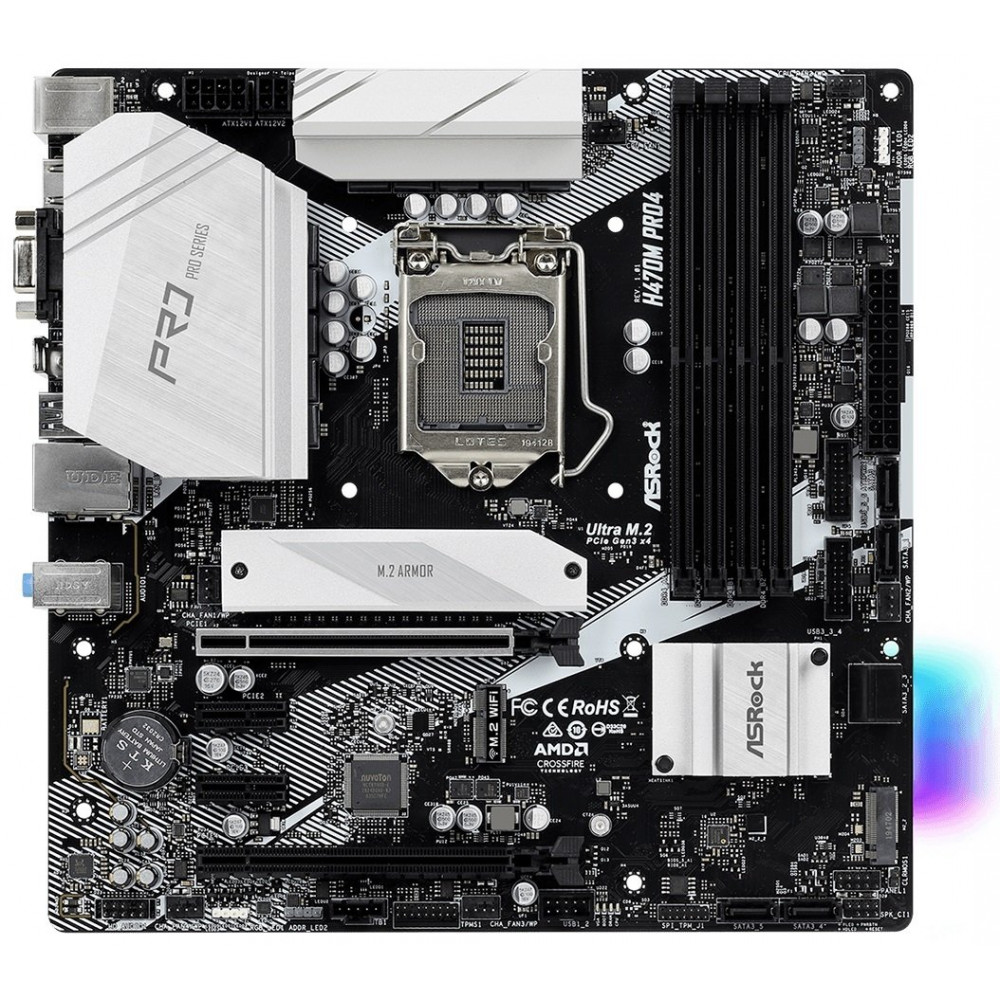

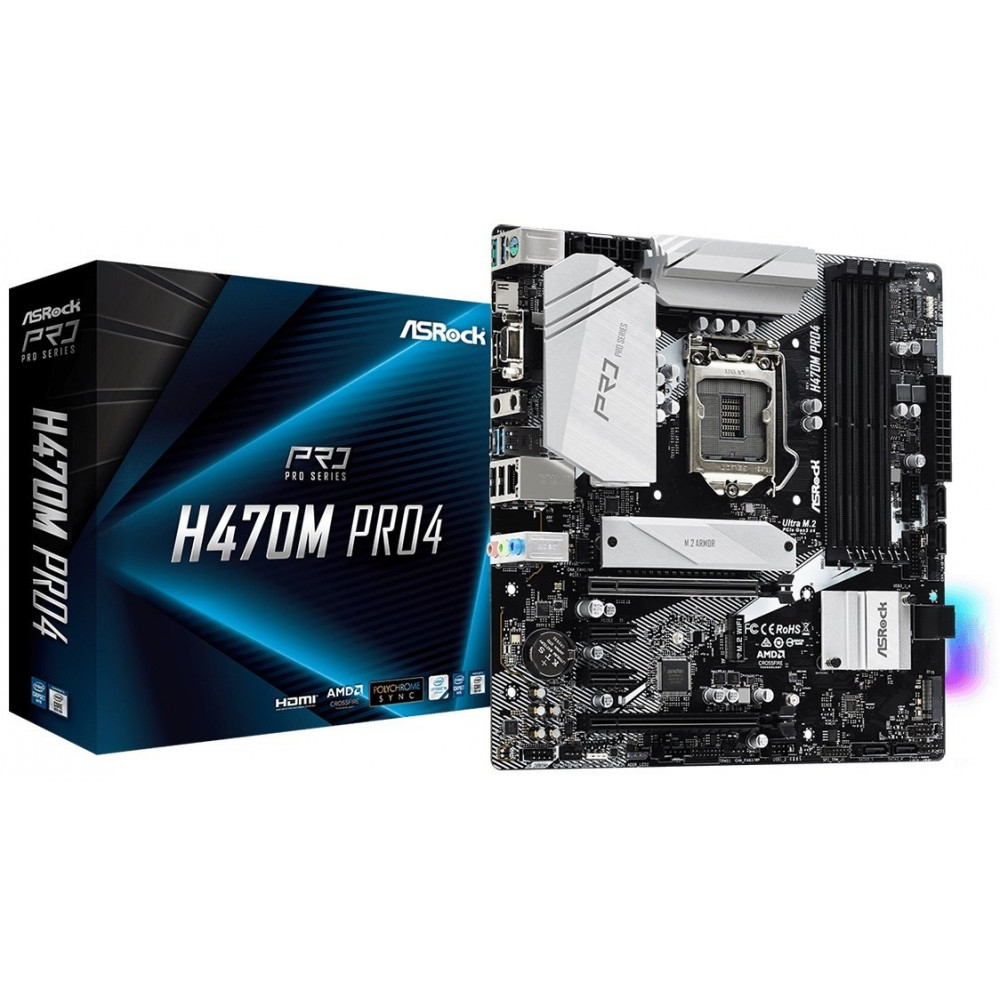

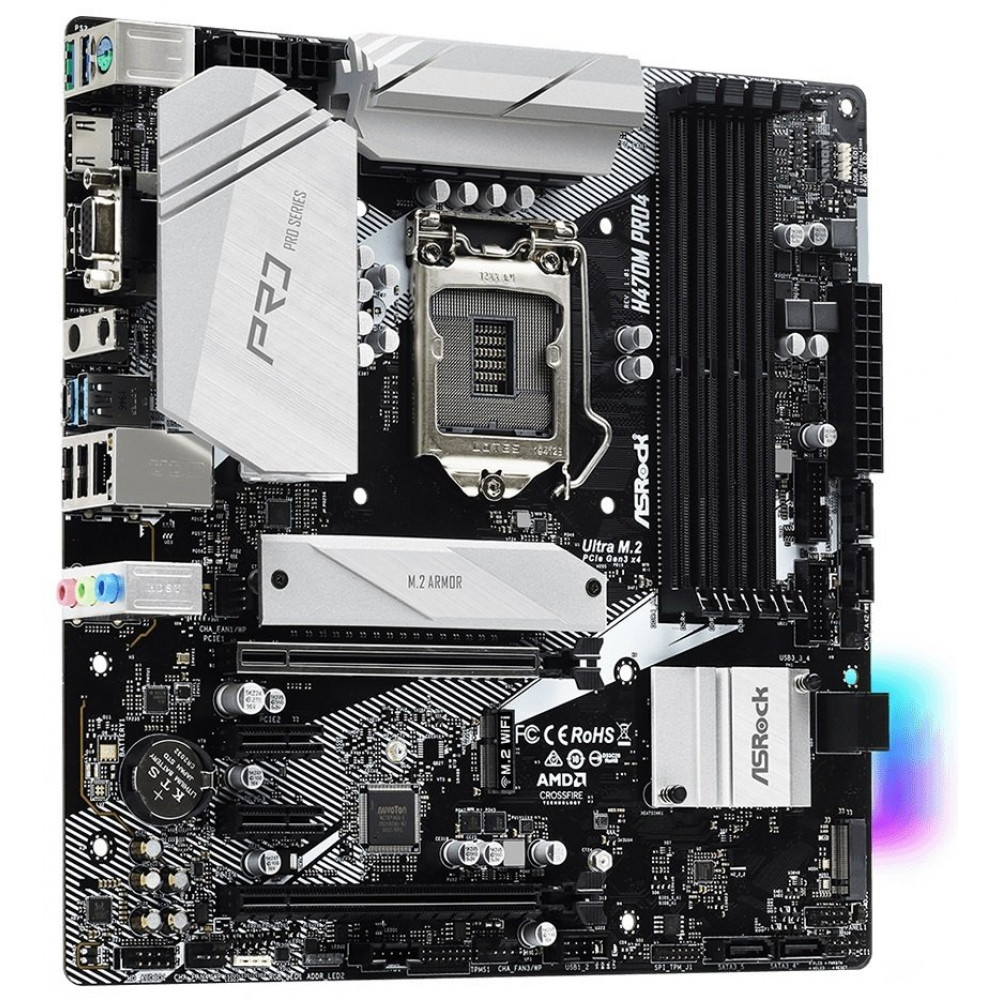

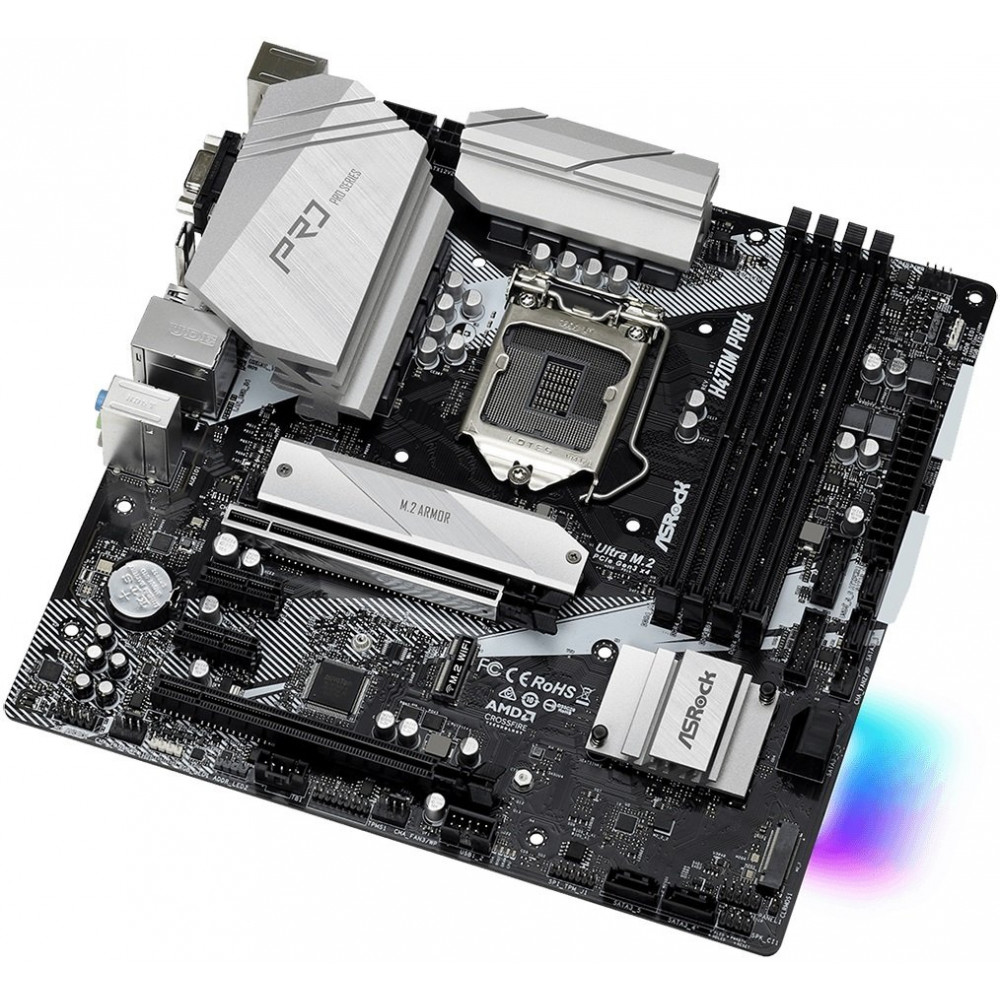

ASRock H470M Pro4 motherboard

Description ASRock H470M Pro4 Motherboard

H470M Pro4

• Support 10th of Gen Intel® Core™ Processors (Socket 1200)
• Power system 9
• DDR4 Support 2933 MHz
• 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 (Key E) for the WiFi support
• AMD Quad CrossFireX™ and CrossFireX™
• Device of graphic data output: HDMI, D-Sub, DisplayPort
• 7.1-channel HD codec (Audiokodek of Realtek ALC1200), Nahimic Audio
• 6 SATA3, 1 of Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen3 x2 & SATA3)
Gen2
• 2 USB 3.2 (Back Type A+C)
Gen1
• 6 USB 3.2 (4 lobbies, 2 back)
• Intel® Gigabit LAN
• Polychrome SYNC

TIME of H470 MOTHERBOARDS

All necessary for a digital era

Nahimic Audio system

When using earphones, headsets, external columns or the integrated speaker phone, through USB, Wi-Fi, an analog output or HDMI, the Nahimic Audio audio system will provide the best sound impressions with rich detailing.

Sound Tracker is the visual indicator specifying from what main directions the sound arrives. Each sound is in a special way located on radar 360 ° for full immersion in game process.

Technology of gain of basic frequencies (BFB)

Not only processors of the K series series and the Z-families platform are capable to show

maximum capacity. Thanks to Via ASRock BFB technology (Boost Frequency Boost) the users can install ne-K processors on ASRock motherboards of the 400th series (not necessarily families Z) and to experience gain of basic frequency, instantly using the hidden potential of processors. The ASRock BFB technology inhales new life in ne-K processors of series and motherboards "not - Z" series, but the actual frequency of acceleration depends on an installed system of cooling.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock Motherboards differ in the stunning performance and effective appearance, and allow to create own light! ASRock offers enhanced features on management of LED illumination on light tapes, CPU fans and cases, and other similar devices.

Network module of Intel® LAN provides

Intel® LAN

with

best throughput, low loading of CPU, the increased stability and brings net surfing to qualitatively new level!

Two Ultra M.2 connectors support by

Dual M.2 For SSD

SATA3 6Gb/s and PCIe Gen3 x4 modes with data transmission rate to 32gbit/with, and are compatible to the ASRock U.2 Kit set for installation of the most high-speed drives U.2 PCIe Gen3 x4.

Steel PCI-E connectors

Steel PCI-E connectors have protection which excludes an interference of a signal of video cards. In these connectors even big and heavy video cards will be installed most reliably.

Dual USB 3.2 Gen2 (Type-A + Type-C)

Onboard USB connectors 3.2 Gen2 Type-A and Type-C with data transmission rate to 10Gbps.

• USB connector 3.2 Gen2 doubles data transmission rate
• USB connector 3.2 Gen2 Type-C doubles charging speed!

Throttles of Premium 50A Power Choke

In comparison with normal throttles, new throttles of a premium class from ASRock raise a saturation current by 3 times, providing more reliable voltage for the motherboard.

Black sapphire

Deep black color. The basis in color of "black sapphire" gives to the motherboard a mysteriousness element.

Printed circuit board of high density

New design of the printed circuit board reduces gaps between layers and protects the motherboard from the electric short circuits caused by humidity.

Diagnostics of Post Status Checker

This simple diagnostic tool shows to

status of the operations CPU/DRAM/VGA/BOOT at each start of a system. Post Status Checker allows to reveal a problem source quickly.

by

Intel® Optane™ Technology

supports technology of work with memory and the drives Intel® Optane™ which sets new standards of performance and responsiveness.

Connector for water cooling

onboard is available the power connector of a water cooling system! It gives current in 1.5 amperes and is suitable for all SVO popular models. Tension on the connector can be increased to receive even more effective cooling.

M.2 Key E Connector for Wi-Fi

Can connect separate Wi-fi module 802.11ac to special connector M.2 (Key E).
* the Wi-fi Module is not included in the delivery package.

Some components of the motherboard are especially sensitive

Full Spike Protection

differences of tension, and redundant current on them can lead to instant failure of all system. The ASRock Full Spike Protection technology reliably protects these components of the motherboard from sudden power surges.

Characteristic ASRock H470M Pro4 Motherboard

Article: span do not have H470M_PRO4

• Form factor micro-ATX
• Processor (socket type) Intel of LGA 1200
• Model of the built-in processor
• Random access memory of DDR4 (quantity of slots), piece 4
• Random access memory of DDR3 (quantity of slots), piece there is no
• Random access memory of DDR2 (quantity of slots), piece there is no
• Chipset Intel H470
• Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
• Wireless interfaces (Wi-Fi) there Is no

• Assignment for game PCs
• Form factor micro-ATX
• Guarantee, month 24
• Processor (socket type) Intel of LGA 1200
• Processor (quantity of socket) 1
• Model of the built-in processor is not present
• Random access memory of DDR4 (quantity of slots), piece 4
• Random access memory of DDR3 (quantity of slots), piece there is no
• Random access memory of DDR2 (quantity of slots), piece there is no
• Random access memory (number of channels) 2nd channel
• Chipset Intel H470
• PCI Express Slot (PCI-E x16 (x16)), piece 2 of x PCI-E x16 (x16) of v3.x
• PCI Express Slot (PCI-E x16 (x8)), piece there is no
• PCI Express Slot (PCI-E x16 (x4)), piece there is no
• Slot of PCI Express (PCI-E x8), piece there is no
• Slot of PCI Express (PCI-E x4), piece there is no
• Slot of PCI Express (PCI-E x1), piece 2 of x PCI-E x1 v3.x
• Slot of PCI, piece there is no
• AGP Slot there is no

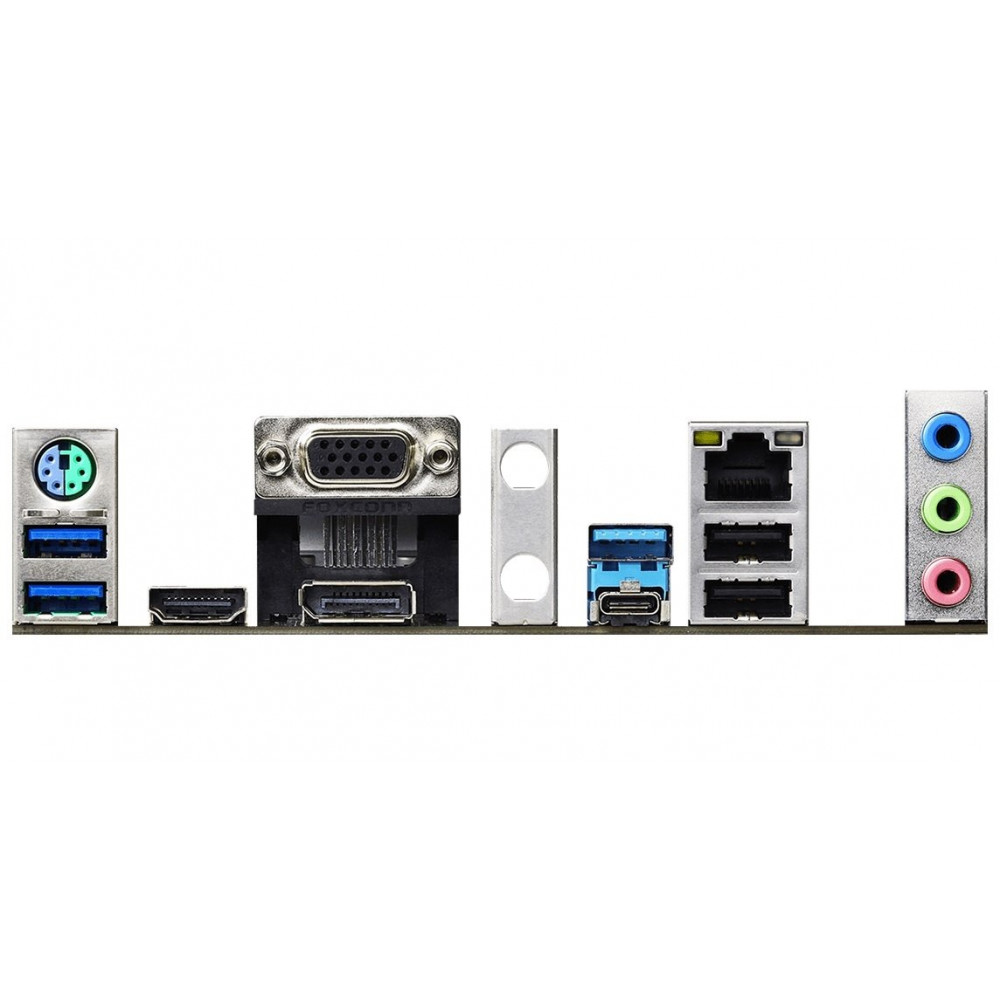

• Type-C/Thunderbolt 3 USB 3.1 Port 1 x USB 3.2 of Type C (Gen 2 up to 10Gbps)
• Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) 1 x USB 3.span do not have 2 Gen 2 Type-A
• Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 2 x USB 3.2 of Gen 1 Type-A (on a payment, for a frontal output)
• Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 1 x USB 2.0 Type-A, 1 x USB 2.0 Type-A (on a payment, for a frontal output)
• VGA (D-Sub) Port 1 x VGA
• Port DVI, piece
• HDMI (mini/micro) Port 1 x HDMI
• Thunderbolt Port span do not have 1 (5-pin on a payment)
• DisplayPort (mini/micro) Port 1 x DisplayPort
• PS/2 Port, piece 1
• COM (RS-232) Port
• Port (IEEE 1394) there is no
• LPT Port (IEEE 1284), piece there is no
• Connector of the TPM module, piece 1 (on a payment)
• Number of SATA3 ports (6gbit/c), piece 6
• Number of SATA2 ports (3gbit/c), span do not have piece
• Number of SATA Express ports (to 10gbit/c), span do not have piece
• Slot of dimm.2, piece there is no
• Mini PCI Express (Mini PCI-E, Socket 3), piece 2 x M.2
• Support of program RAID RAID 0, RAID 1, RAID 10, RAID 5
• eSATA Port is not present
• Quantity of eSATA, piece there is no
• Number of IDE ports there is no
• Slot for FDD there is no
• Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
• Network connection (quantity of LAN RJ-45), Mbps 1
• LAN controller Model Intel I219V
• Wireless interfaces (Wi-Fi) there Is no
• Wireless interfaces (Bluetooth/NFC) is not present
• Built-in sound processor Realtek ALC1200
• Multichannel sound 7.1
• Will corrode 3.5 mm (mini-Jack), piece 3
• Optical output (S/PDIF) is not present
• Support of several video cards AMD CrossFireX, AMD Quad-GPU CrossFireX
• Built-in video is not present
• BIOS Ami, UEFI
• DualBIOS Support is not present
• General height of a product (H), mm 244
• General width of a product (W), 244
• Illumination Is
• Colour Black
• Main power connector 24 - pin

Show to mm all characteristics
