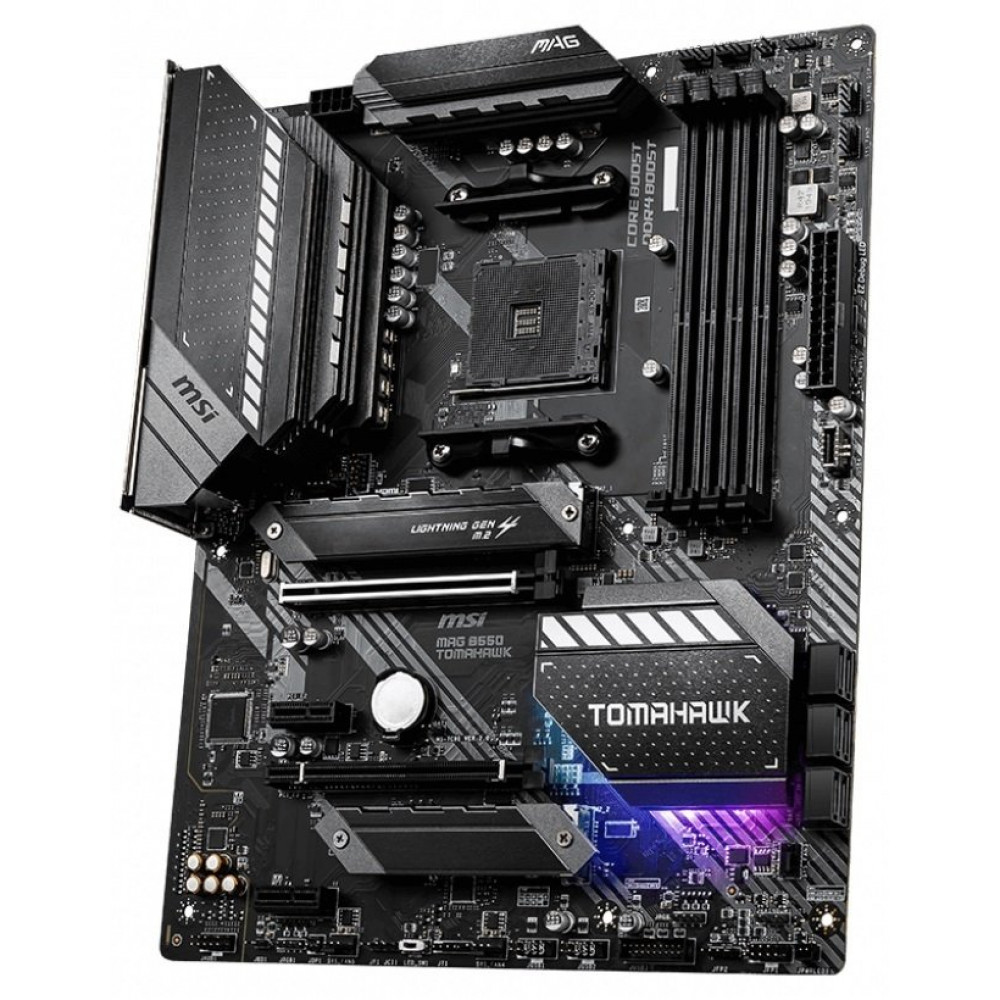

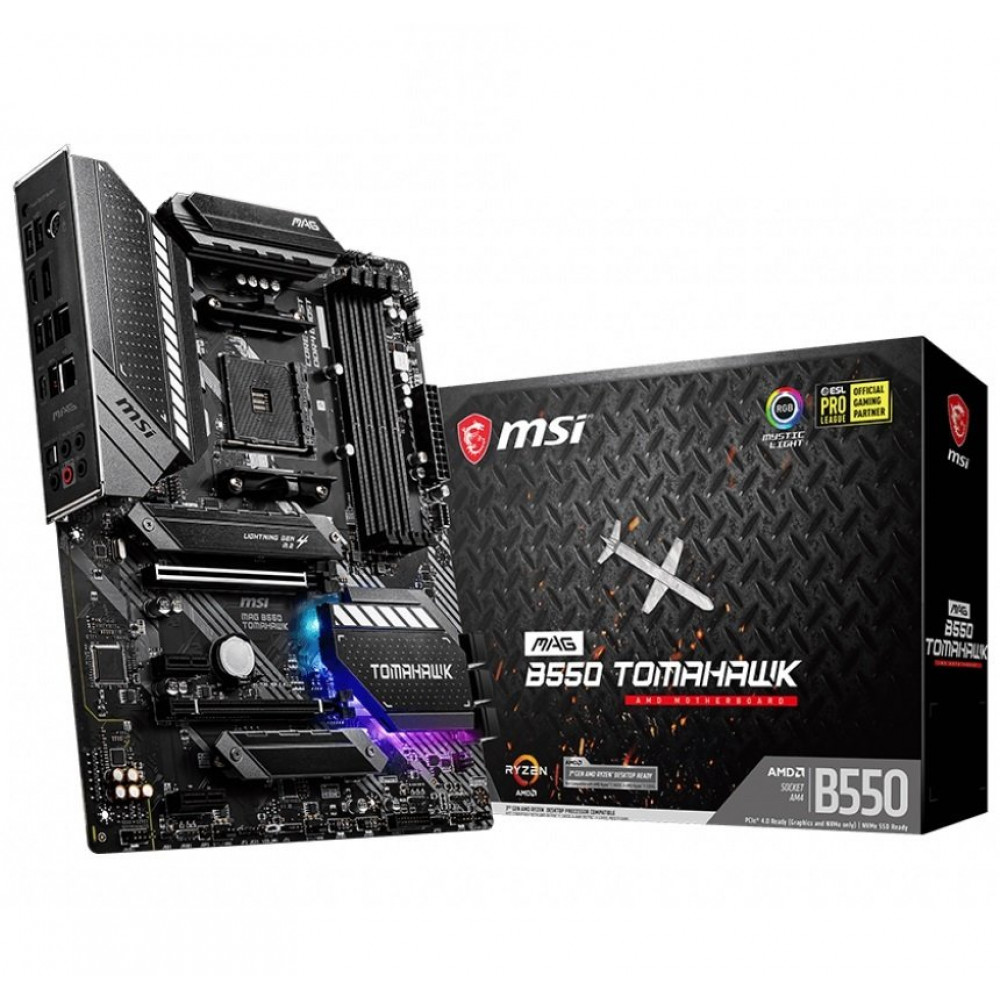

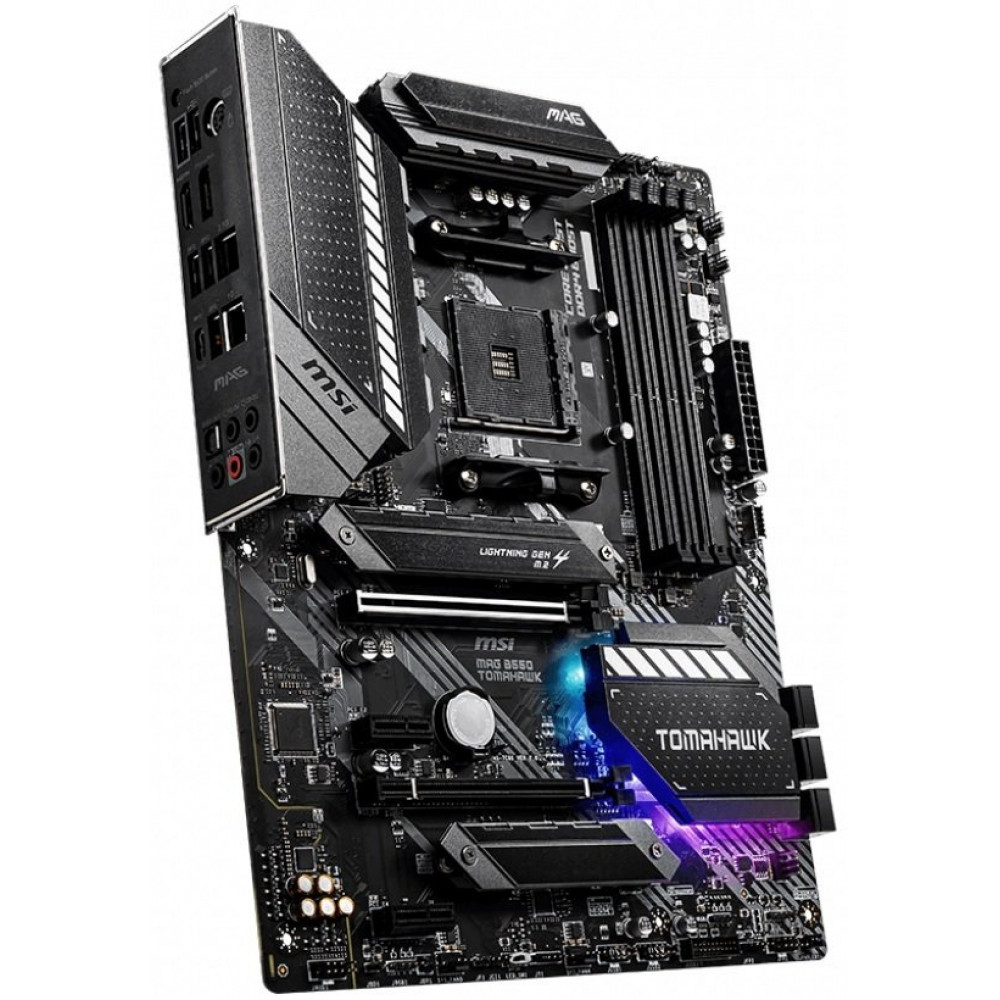

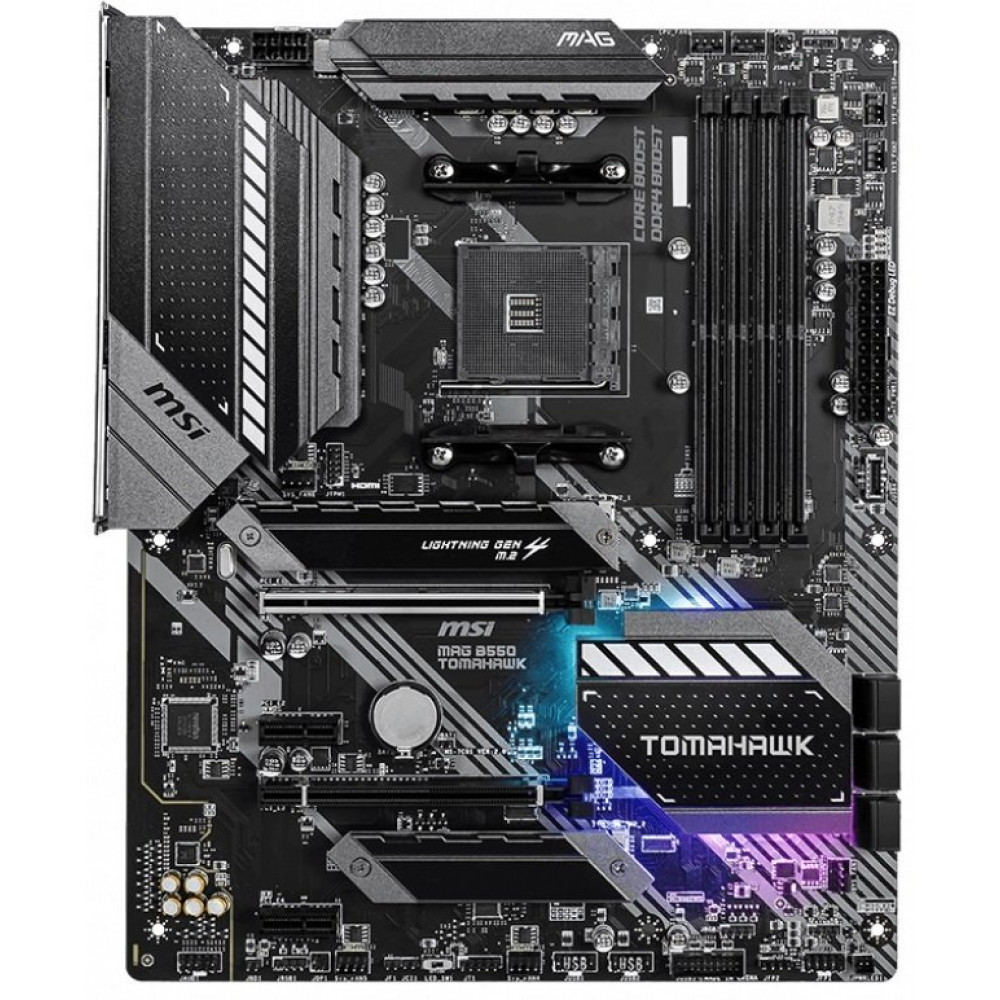

Description Maternal MSI MAG B550 TOMAHAWK board (MAG_B550_TOMAHAWK)

Take a step to a victory!

Products of the MAG series are aimed by

at users, in particular at the beginning gamers who prefer easy to use and reliable solutions. Carefully tested, they just steadily do what are intended for.

Advanced engineering solutions

Specialists of MSI have extensive experience on development of high-performance motherboards. They select the best schemes and components to create the devices capable it is reliable to work even in the most extreme conditions.

For flagman processors

As processors become harder and harder and include more and more kernels, requirements to the systems of their power and cooling grow. The innovative engineering solutions applied on MSI motherboards, such as power system radiator, will allow to implement completely all high-speed potential of the most powerful processors.

M.2 Shield Frozr Cooling system

Most high-speed SSD can reduce the performance under high loadings to avoid overheating therefore they will not be prevented by additional cooling. On this motherboard it is implemented in the form of a radiator of M.2 Shield Frozr.

Program adjustment of fans

MSI Motherboards allow to adjust all system and processor fans connected to them, giving to the user all information necessary for this purpose in a laconic visual format. That rotational speed changed automatically, it is enough to specify 4 threshold values of temperature for the CPU and the motherboard.

It is optimized for water cooling

This motherboard supports all most popular water cooling systems available at the moment, facilitating their installation by means of specially selected "free zones". Also it has a separate connector for connection of a water pump, capable to give current with a force up to 3 amperes and allowing to regulate flexibly the speed of its work.

Improved performance

High-performance MSI motherboards are allocated with the advanced functionality and technologies which will be useful to any user, whether it be the gamer, the professional or the computer enthusiast.

LIGHTNING GEN 4 M.2 Interface

Using possibilities of Ryzen processors of the 3rd generation, MSI motherboards of B550 series offer the high-speed Lightning Gen4 M.2 interface which throughput reaches 64 Gbps for connection of solid-state drives.

Interfaces

High-quality audio system, the advanced network controllers, a set of USB ports and illumination of Mystic Light – all these elements implemented on MSI motherboards allow to play with even great comfort.

High-speed connection to a wired network

On the MAG B550 TOMAHAWK motherboard is available couple of Ethernet ports (2.5G and Gigabit Ethernet) which allow to transfer data on a wired network with high speed and low latency. The LAN Manager utility is capable to automatically determine type of applications which use network connection and to provide the greatest priority to the most important of them.

fastest Gen2 USB interface 3.2

High-speed ports USB 3.2 Gen2 implemented on MAG series MSI motherboards in the form of USB connectors 3.2 Gen 2 Type-A and Type-C have throughput up to 10 Gbps. Transfer files through the USB interface quicker, than ever earlier!

MOTHERBOARD MYSTIC LIGHT ILLUMINATION

Add bright paints to the computer system by means of illumination of Mystic Light which is capable to display 16.8 million different shades and 29 dynamic visual effects.

Characteristic Maternal MSI MAG B550 TOMAHAWK board (MAG_B550_TOMAHAWK)

Article: span do not have MAG_B550_TOMAHAWK

Form factor ATX
Processor (socket type) AMD Socket AM4
Model of the built-in processor
Random access memory of DDR4 (quantity of slots), piece 4
Chipset AMD B550
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet, 100/1000/2500 Ethernet
Wireless interfaces (Wi-Fi) there Is no

Assignment for game PCs
Form factor ATX
Guarantee, month 36
Technology Core Boost
Processor (socket type) AMD Socket AM4
Processor (quantity of socket) 1
Model of the built-in processor is not present
Random access memory of DDR4 (quantity of slots), piece 4
Random access memory (number of channels) 2nd channel
Random access memory (ECC support) there is no
Chipset AMD B550
PCI Express Slot (PCI-E x16 (x16)), piece 2 of x PCI-E x16 (x16) of v3.x
Slot of PCI Express (PCI-E x1), piece 2 of x PCI-E x1 v3.x

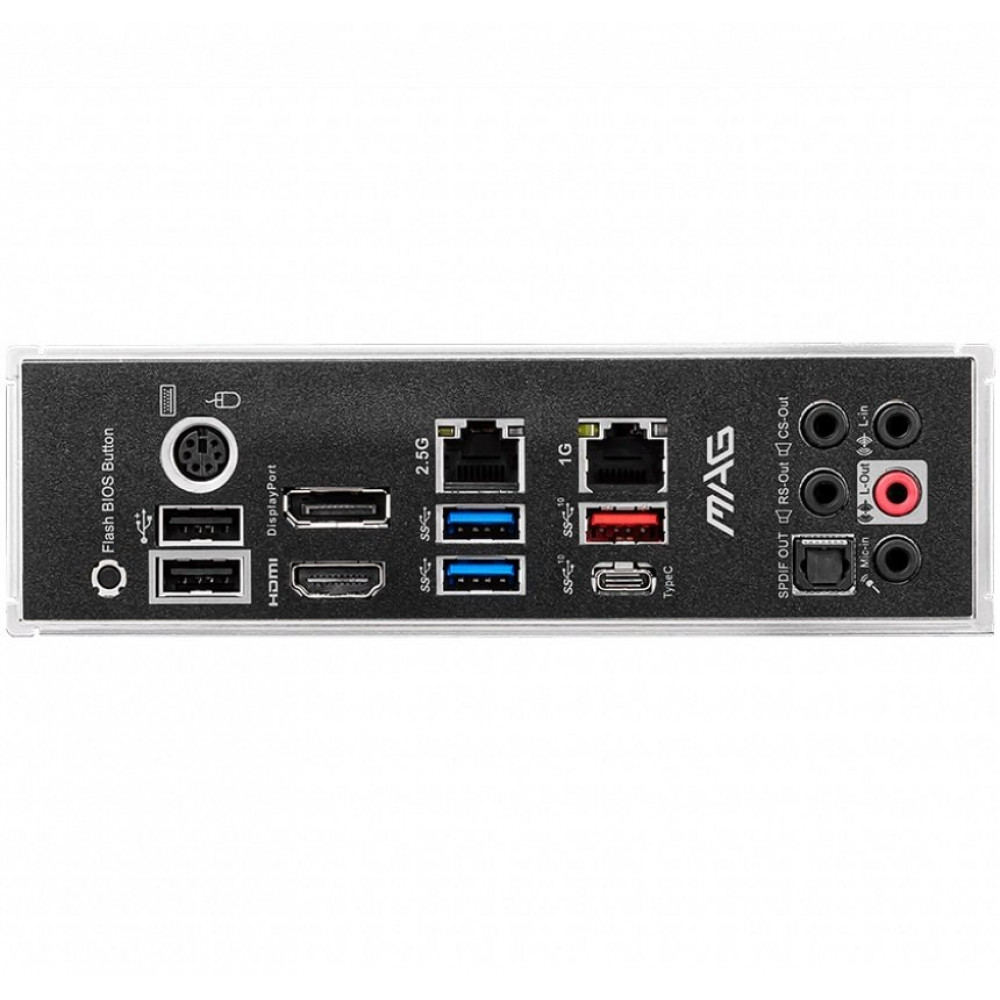

Type-C/Thunderbolt 3 USB 3.1 Port 1 x USB 3.1 of Type C (Gen 2 up to 10Gbps)
Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) 1 x USB 3.1 of Gen 2 Type-A
Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 2 x USB 3.0/3.1 of Gen 1 Type-A
Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 2 x USB 2.0 Type-A
VGA (D-Sub) Port there Is no
Port DVI, piece there is no
HDMI (mini/micro) Port 1 x HDMI
Thunderbolt Port there is no
DisplayPort (mini/micro) Port 1 x DisplayPort
PS/2 Port, piece 1
Connector of the TPM module, piece 1 (on a payment)
Number of SATA3 ports (6gbit/c), piece. 6
Support of program RAID RAID 0, RAID 1, RAID 10
eSATA Port is not present
Number of IDE ports there is no
Network connection (LAN RJ-45), span do not have Mbps 10/100/1000 Ethernet, 100/1000/2500 Ethernet
Network connection (quantity of LAN RJ-45), Mbps 2
LAN controller Model Realtek RTL8111H, Realtek RTL8125B
Wireless interfaces (Wi-Fi)
Wireless interfaces (Bluetooth/NFC) there is no
Built-in sound processor Realtek ALC1200
Multichannel sound 7.1
Will corrode 3.5 mm (mini-Jack), piece 5
Optical output (S/PDIF) is
Support of several video cards AMD 2-Way CrossFire
Built-in video there is no
BIOS AMI UEFI
DualBIOS Support there is no
Control button Flash BIOS Button
Cooling of the north-bridge passive (radiator)
Cooling of the south bridge passive (radiator)
General height of a product (H), mm 305
General width of a product (W), the mm 244
Illumination Is
Colour Black
Main power connector 24 - pin
Number of power connectors of coolers (total with CPU Fan), piece 8
Number of power connectors of coolers (CPU Fan), 1
