Description GIGABYTE Z490I AORUS ULTRA Motherboard (Z490I_AORUS_ULTRA)

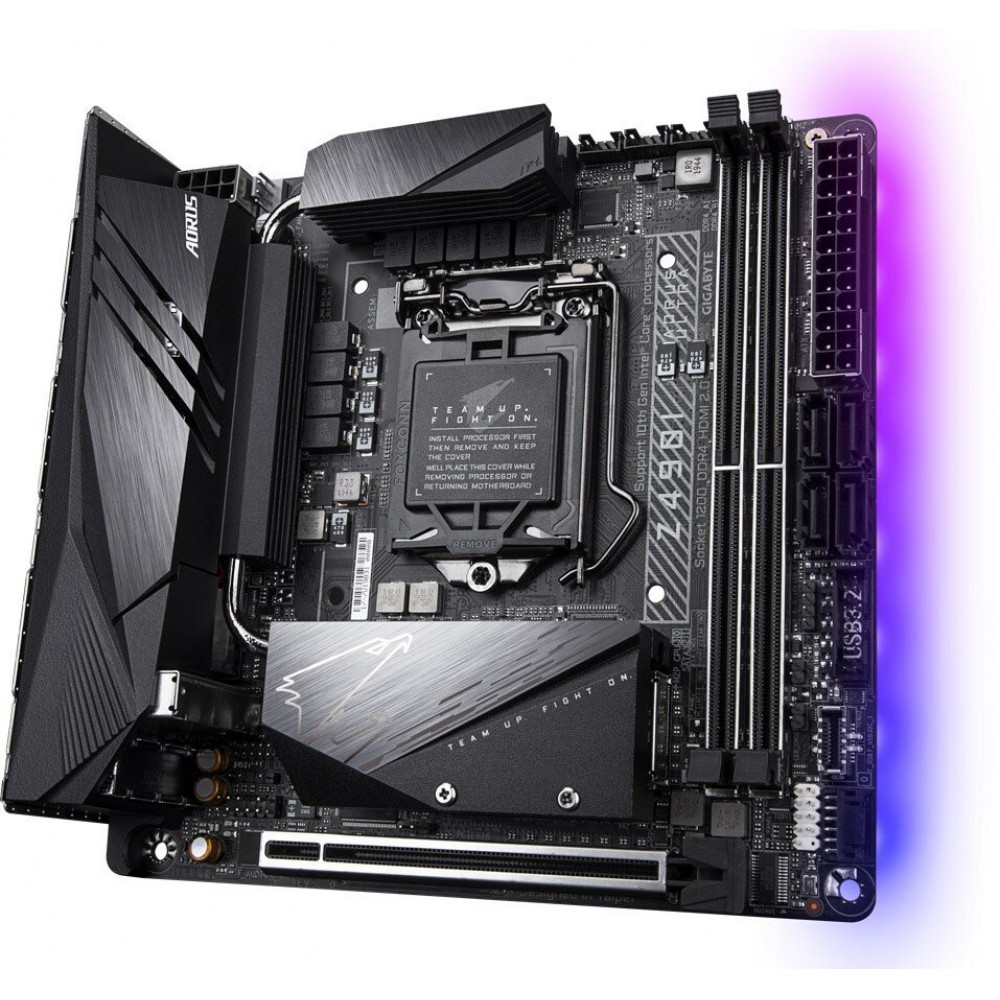

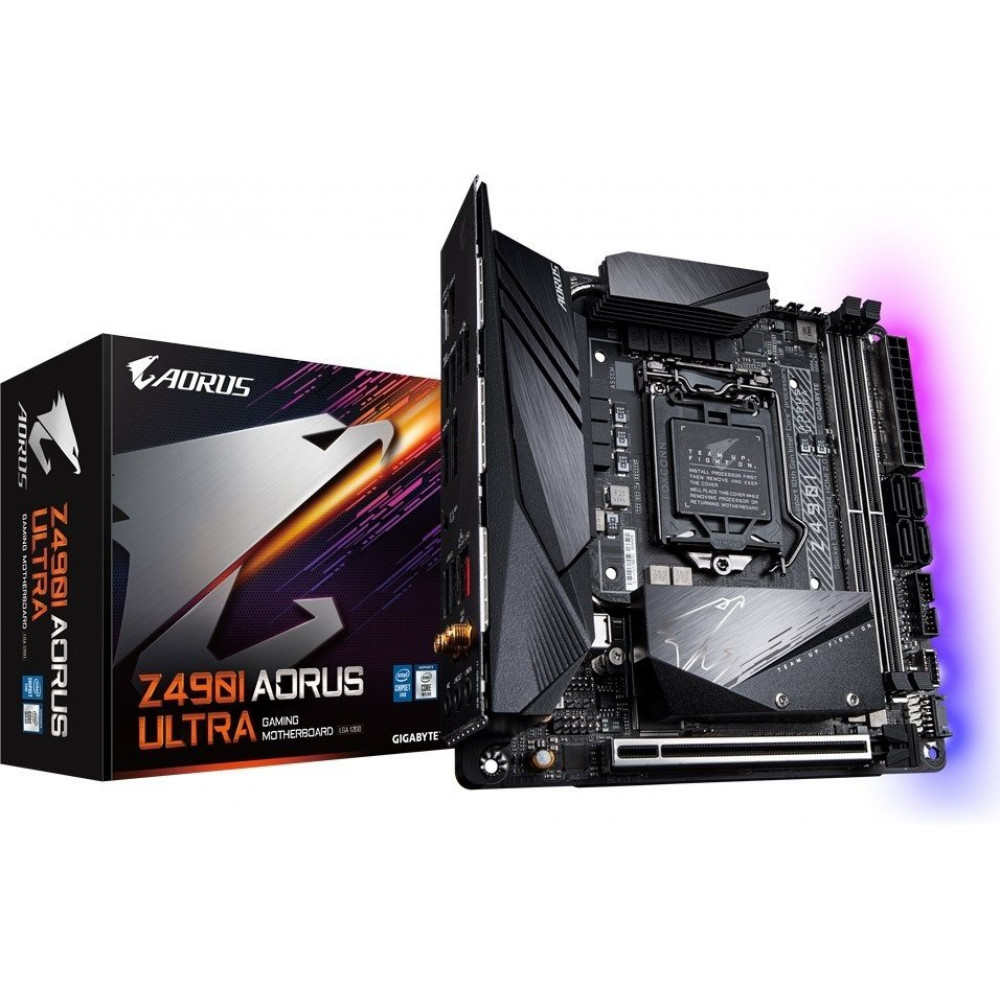

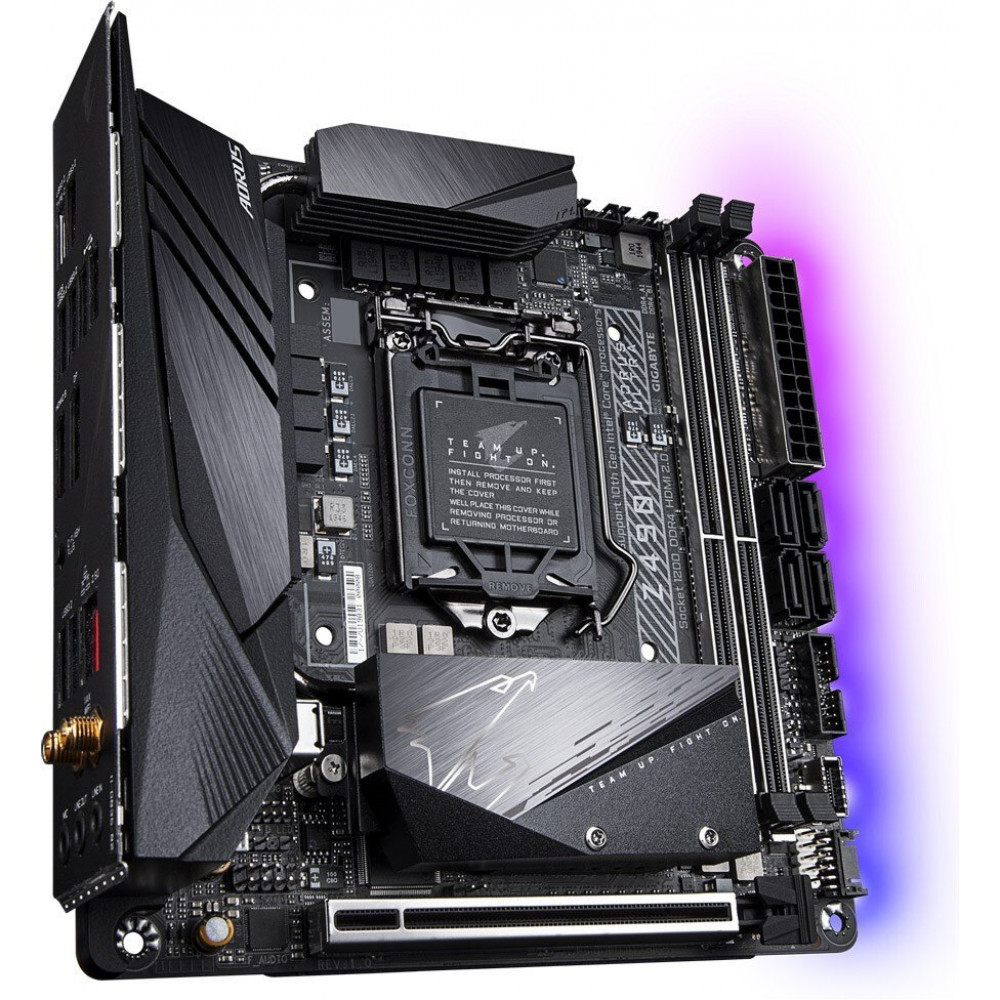

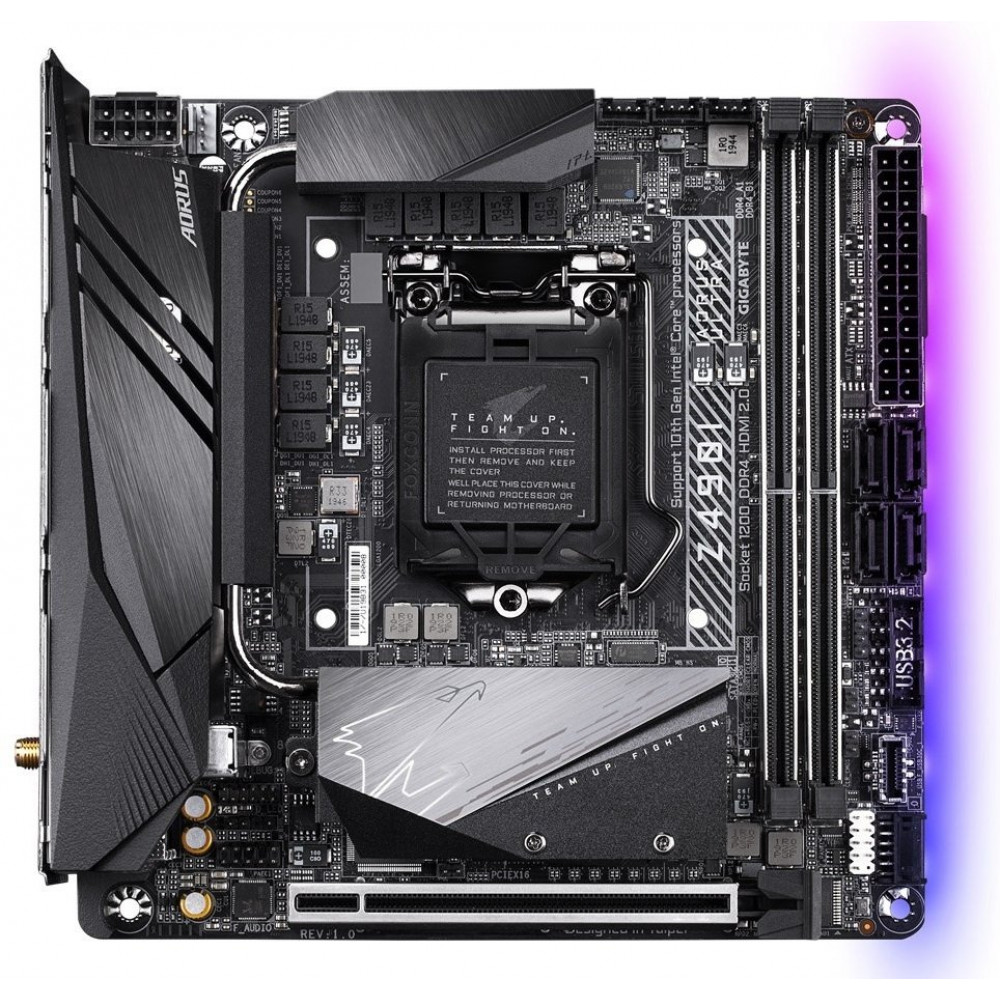

GIGABYTE Z490I AORUS ULTRA

Mini-ITX format AORUS Motherboard on the basis of a chipset of Intel Z490 Express, progressive design of the 8+1-phase VRM module, the effective cooling system, the Intel® WiFi 6,802.11ax module, the controller of Intel 2.5GbE LAN, the digital HDMI 2.0 video interface, the RGB FUSION 2.0 function.

EXCLUSIVE FEED CIRCUIT

Support of the RAM DDR4 modules with XMP 5000 MHz and above

GIGABYTE Company offers

AORUS platform which is carefully tested industrially which provides appropriate compatibility with XMP profiles of the RAM modules capable to work at frequency of 5000 MHz and above. To reach the specified memory subsystem performance, the user needs to make sure only that the RAM modules installed in a system support XMP profiles, at the same time the option XMP is present and is activated in appropriate section of BIOS Setup of the AORUS motherboard.
x4 Two M.2 the PCI Express 3.0 connector

ORIGINAL SCHEME of COOLING

SmartFan 5 Function

Thanks to Smart Fan 5 the users can be sure by

that their game PC will function in the most favorable temperature condition without prejudice to performance. Thanks to the thermal sensors placed on the motherboard, means of Smart Fan 5 it is possible to control operation of each fan. Besides, Smart Fan 5 is an also bigger number of hybrid connectors for connection of fans which support operation modes of PWM and Voltage, providing the maximum convenience of service of the installed liquid system of cooling.

Controller of Intel 2.5GbE LAN

Polyzonal light show

Now when there was an opportunity to select a preferred choice from the extensive list of ready profiles, or to independently create the unique profile, users can organize PC illumination in compliance with their ideas of style. Thanks to full support of RGB rulers and functionality of the processed RGB Fusion application 2.0 users got access to management of all LEDs involved in illumination of the motherboard and its environment.

Reinforced PCIe Ultra Durable connectors

are installed by

Within the concept of new design of the GIGABYTE boards on PCIe connectors screens from stainless steel thanks to which plastic blocks get additional protection and are ready to installation of any PCI Express of expansion cards.

Characteristic GIGABYTE Z490I AORUS ULTRA Motherboard (Z490I_AORUS_ULTRA)

Article: span do not have Z490I_AORUS_ULTRA

Form factor mini-ITX
Processor (socket type) Intel of LGA 1200
Model of the built-in processor
Random access memory of DDR4 (quantity of slots), piece 2
Random access memory of DDR3 (quantity of slots), piece there is no
Random access memory of DDR2 (quantity of slots), piece there is no
Chipset Intel Z490
Network connection (LAN RJ-45), Mbps 100/1000/2500 Ethernet
Wireless interfaces (Wi-Fi) 802.11 a/b/g/n/ac/ax

Assignment for game PCs
Form factor mini-ITX
Guarantee, month. 36
Processor (socket type) Intel of LGA 1200
Processor (quantity of socket) 1
Model of the built-in processor is not present
Random access memory of DDR4 (quantity of slots), piece 2
Random access memory of DDR3 (quantity of slots), piece there is no
Random access memory of DDR2 (quantity of slots), piece there is no
Random access memory (number of channels) 2nd channel
Chipset Intel Z490
PCI Express Slot (PCI-E x16 (x16)), piece 1 of x PCI-E x16 (x16) of v3.x
Slot of PCI Express (PCI-E x8), piece there is no
Slot of PCI Express (PCI-E x4), piece there is no
Slot of PCI Express (PCI-E x1), piece there is no
Slot of PCI, piece there is no
AGP Slot there is no

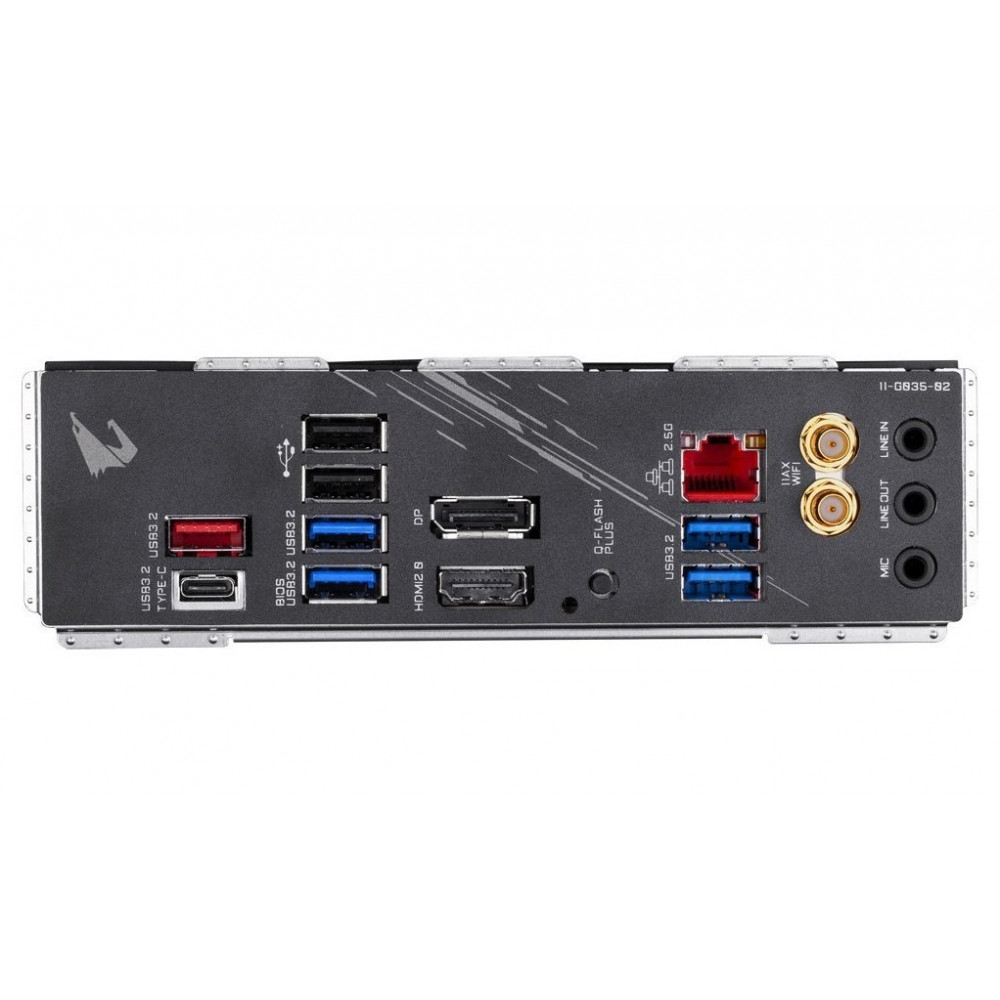

Type-C/Thunderbolt 3 USB 3.1 Port 1 (on a payment), 1 x USB 3.2 Type C (Gen 2 up to 10Gbps)
Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) 1 x USB 3.2 of Gen 2 Type-A
Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 1 x USB 3.0/3.1 of Gen 1 Type-A (on a payment, for a frontal output), 4 x USB 3.2 Gen 1 Type-A
Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 1 x USB 2.0 Type-A (on a payment, for a frontal output), span do not have 2 x USB 2.0 Type-A
VGA (D-Sub) Port
Port DVI, piece there is no
HDMI (mini/micro) Port 1 x HDMI
Thunderbolt Port there is no
DisplayPort (mini/micro) Port 1 x DisplayPort
PS/2 Port, piece there is no
COM (RS-232) Port Is not present
Port (IEEE 1394) is not present
LPT Port (IEEE 1284), piece is not present
Number of SATA3 ports (6gbit/c), piece 4
Number of SATA2 ports (3gbit/c), piece is not present
Number of SATA Express ports (to 10gbit/c), piece is not present
Slot of dimm.2, piece is not present
Mini PCI Express (Mini PCI-E, span do not have Socket 3), piece 2 x M.2
Support of program RAID RAID 0, RAID 1, RAID 10, RAID 5
eSATA Port is not present
Quantity of eSATA, piece is not present
Number of IDE ports is not present
Slot for FDD
Network connection (LAN RJ-45), Mbps 100/1000/2500 Ethernet
Network connection (quantity of LAN RJ-45), Mbps 1
LAN controller Model Intel 2.5GbE
Wireless interfaces (Wi-Fi) 802.11 a/b/g/n/ac/ax
Fastening for antenna Wi-Fi are
Wireless interfaces (Bluetooth/NFC) Bluetooth 5.0
Built-in sound processor Realtek ALC1220-VB
Multichannel sound 7.1
I Will corrode 3.5 mm (mini-Jack), piece 3
Built-in video there is no
BIOS Ami, UEFI
Control button Clear CMOS (jumper)
Cooling of the south bridge passive (radiator)
General height of a product (H), mm 170
General width of a product (W), the mm 170
Illumination Is
Colour Black
Main power connector 24 - pin
Number of power connectors of coolers (total with CPU Fan), piece 4
Number of power connectors of coolers (CPU Fan), 1
